Definition and Example of Gurney in Automotive Spoilers

Last Updated Apr 14, 2025

A Gurney flap, often seen on automotive spoilers, is a small vertical tab mounted on the trailing edge of the spoiler. This aerodynamic device enhances downforce by creating a pressure difference between the upper and lower surfaces of the spoiler, improving vehicle stability at high speeds. The Gurney flap's size typically ranges from 10 to 20 millimeters in height and is designed to optimize airflow without significantly increasing drag. In racing cars, the Gurney flap plays a critical role by increasing cornering grip through improved aerodynamic efficiency. Engineers analyze data from wind tunnel testing and on-track telemetry to fine-tune the angle and height of the flap for maximum performance. This simple yet effective addition to the spoiler can contribute to faster lap times and better overall handling characteristics.

Table of Comparison

Car Model Gurney Flap Type Position on Spoiler Purpose Effect on Aerodynamics
Porsche 911 GT3 RS Small Raised Edge Rear Spoiler Trailing Edge Increase Downforce Enhances rear stability at high speed
Ford GT Mk II Extended Gurney Flap Rear Wing Trailing Edge Maximize Downforce without Drag Penalty Improves cornering grip with minimal drag increase
Mazda RX-7 FD Medium Gurney Flap Rear Spoiler Upper Edge Balance Downforce and Top Speed Optimizes airflow separation and adds rear grip
Nissan GT-R R35 Integrated Gurney Flap Adjustable Rear Wing Trailing Edge Adaptive Downforce Control Adjusts downforce according to driving conditions
Chevrolet Corvette C7 Z06 Low Profile Gurney Flap Rear Wing Trailing Edge Enhance Lap Time Performance Increases downforce with minimal drag penalty

What is a Gurney Flap in Automotive Spoilers?

A Gurney flap is a small, vertical tab attached to the trailing edge of automotive spoilers, designed to enhance aerodynamic performance by increasing downforce without significantly raising drag. Commonly used in race cars like the Porsche 911 GT3, it improves rear stability and cornering grip by creating vortices that energize the airflow over the spoiler. This simple yet effective modification helps optimize traction and vehicle handling at high speeds.

The Engineering Principle Behind Gurney Flaps

Gurney flaps, small perpendicular tabs on spoiler trailing edges, enhance aerodynamic downforce by creating a high-pressure zone on the upper surface and a low-pressure wake behind. This principle increases drag slightly but significantly boosts stability and grip at high speeds, improving vehicle handling during cornering and braking. Engineers optimize flap height and angle to balance aerodynamic efficiency with minimal performance trade-offs in automotive design.

History and Origin of the Gurney Flap

The Gurney flap, a small tab attached to the trailing edge of a spoiler, originated in the 1970s thanks to race car driver and engineer Dan Gurney. It was initially developed to increase downforce on race cars without significantly increasing drag, revolutionizing aerodynamic performance in motorsports. This simple yet effective device has since been widely adopted in automotive spoilers to optimize stability and handling at high speeds.

Gurney Flap: How It Enhances Spoiler Performance

A Gurney flap is a small, angled tab attached to the trailing edge of a car spoiler, creating a high-pressure zone that improves downforce and stability. This aerodynamic element increases the spoiler's efficiency by reducing drag while boosting grip during high-speed cornering. Racing vehicles and performance cars often utilize Gurney flaps to optimize handling and enhance overall driving dynamics.

Real-World Examples: Gurney Flaps on Production Cars

Gurney flaps are commonly utilized on high-performance production cars like the Chevrolet Corvette Z06 and the Porsche 911 GT3 to enhance aerodynamic stability by increasing downforce on the rear spoiler. These small, vertical tabs improve track grip and handling without significantly increasing drag, proving effective in both road and race conditions. Manufacturers integrate Gurney flaps to optimize aerodynamic efficiency while maintaining everyday drivability in sports and supercars.

Gurney Flap Applications in Motorsport Aerodynamics

Gurney flaps are small, angled tabs attached to the trailing edge of a car's spoiler, commonly used in motorsport to enhance aerodynamic downforce without significantly increasing drag. By disrupting airflow, Gurney flaps increase pressure difference above and below the spoiler, improving tire grip and vehicle stability during high-speed cornering. Formula 1 and NASCAR teams frequently optimize Gurney flap size and angle to balance aerodynamic efficiency and maximize lap time performance.

Installing a Gurney Flap: Step-by-Step Guide

Installing a Gurney flap on a car spoiler begins with cleaning the spoiler surface to ensure proper adhesion. Next, align the Gurney flap along the trailing edge of the spoiler, using measuring tools to achieve precise placement. Secure the flap with high-strength adhesive or rivets, then test for aerodynamic improvements through a wind tunnel or on-track performance analysis.

Material Choices for Gurney Flaps in Spoilers

Gurney flaps in automotive spoilers commonly utilize lightweight materials such as carbon fiber and fiberglass, offering a high strength-to-weight ratio that enhances aerodynamic efficiency without adding significant mass. Aluminum alloys are also favored for their durability and corrosion resistance, balancing performance and longevity in varied driving conditions. Advanced composites integrate stiffness with flexibility, optimizing downforce and stability crucial for high-speed vehicle dynamics.

Comparing Gurney Flaps to Other Spoiler Modifications

Gurney flaps offer a unique aerodynamic advantage by increasing downforce with minimal drag impact compared to traditional spoilers that often sacrifice speed for grip. Unlike larger, more complex spoiler modifications like multi-element wings, Gurney flaps are small, simple tabs that enhance airflow separation and improve stability without significant design changes. This makes Gurney flaps a cost-effective solution for optimizing vehicle performance, especially in racing and high-performance street cars.

Advantages and Drawbacks of Using Gurney Flaps

Gurney flaps on automotive spoilers enhance downforce by increasing rear-wheel grip, improving cornering stability and braking performance without significantly increasing drag. Their simple design allows for easy installation and adjustment, making them cost-effective for tuning aerodynamic balance. However, excessive use can lead to increased aerodynamic drag and potential instability at high speeds, requiring precise calibration to optimize performance benefits.

Definition and Example of Gurney in Automotive Spoilers

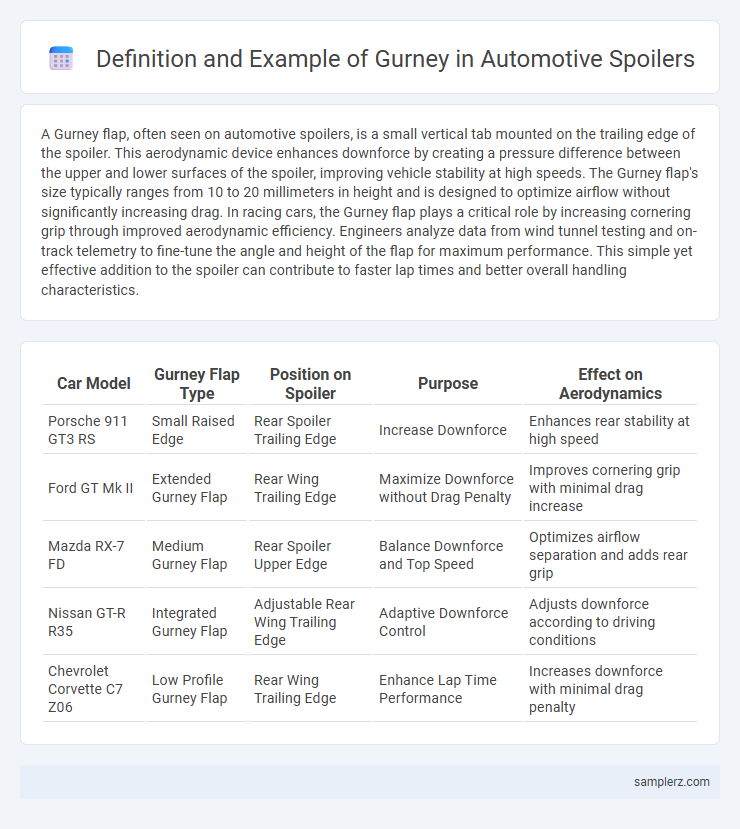

example of gurney in spoiler Infographic
