samplerz.com An example of an air interface in mobile networks is the Long Term Evolution (LTE) standard. LTE uses Orthogonal Frequency Division Multiple Access (OFDMA) for the downlink and Single Carrier-Frequency Division Multiple Access (SC-FDMA) for the uplink, enabling high-speed data transfer and low latency communication. This air interface supports advanced features such as MIMO (Multiple Input Multiple Output) technology, which enhances spectral efficiency and network capacity. Another notable example is the Global System for Mobile Communications (GSM) air interface. GSM employs Time Division Multiple Access (TDMA) to divide channels into timeslots, allowing multiple users to share the same frequency band efficiently. The GSM air interface also includes adaptive modulation and coding schemes to optimize signal quality and maintain reliable voice and data transmission across varying network conditions.
Table of Comparison
| Air Interface Technology | Generation | Modulation Scheme | Frequency Bands | Key Features |
|---|---|---|---|---|
| GSM (Global System for Mobile Communications) | 2G | GMSK (Gaussian Minimum Shift Keying) | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz | Voice-oriented, circuit-switched, basic data services |
| UMTS (Universal Mobile Telecommunications System) | 3G | WCDMA (Wideband Code Division Multiple Access) | 850 MHz, 900 MHz, 1900 MHz, 2100 MHz | Higher data rates, simultaneous voice and data |
| LTE (Long Term Evolution) | 4G | OFDM (Orthogonal Frequency Division Multiplexing) | 700 MHz, 800 MHz, 1800 MHz, 2600 MHz | All-IP network, higher spectral efficiency, low latency |
| 5G NR (New Radio) | 5G | OFDM with flexible numerology | Sub-6 GHz, mmWave (24 GHz and above) | Ultra-low latency, massive connectivity, enhanced mobile broadband |
Introduction to Air Interface in Mobile Networks
Air interface in mobile networks represents the wireless communication link between mobile devices and base stations, enabling data and voice transmission through radio waves. Key examples include GSM's Time Division Multiple Access (TDMA), LTE's Orthogonal Frequency Division Multiple Access (OFDMA), and 5G's New Radio (NR) using millimeter wave (mmWave) technology. These air interfaces optimize spectral efficiency, support high data rates, and reduce latency to meet evolving mobile communication demands.
Evolution of Air Interfaces: From 1G to 5G
The evolution of air interfaces in mobile networks showcases a transition from analog 1G using Frequency Division Multiple Access (FDMA) to digital 2G implementing Time Division Multiple Access (TDMA) and Code Division Multiple Access (CDMA). 3G introduced Wideband CDMA (WCDMA) enabling higher data rates, followed by 4G LTE employing Orthogonal Frequency Division Multiple Access (OFDMA) for enhanced spectral efficiency and reduced latency. 5G air interfaces utilize New Radio (NR) technology that supports millimeter-wave frequencies, Massive Multiple Input Multiple Output (MIMO), and beamforming, significantly boosting capacity, speed, and connection density.
GSM (Global System for Mobile Communications) Air Interface
GSM (Global System for Mobile Communications) air interface utilizes Time Division Multiple Access (TDMA) technology to divide frequency bands into time slots for multiple users. It operates primarily in the 900 MHz and 1800 MHz frequency bands, enabling efficient spectrum usage and reducing interference. The air interface supports both voice and data transmission through dedicated channels like the Traffic Channel (TCH) and Control Channel (CCH), ensuring reliable mobile communication.
CDMA (Code Division Multiple Access) Air Interface Explained
CDMA (Code Division Multiple Access) air interface enables multiple mobile users to share the same frequency band simultaneously by assigning unique spreading codes to each user, enhancing spectral efficiency and reducing interference. It uses wideband spread spectrum technology combined with orthogonal codes, allowing robust signal separation and secure communication in 3G mobile networks. CDMA air interface supports soft handoff and power control mechanisms, improving call quality and network capacity in mobile telecommunications.
WCDMA and HSPA: 3G Air Interface Technologies
WCDMA (Wideband Code Division Multiple Access) forms the foundational 3G air interface enabling high-capacity mobile communication through wideband spectrum utilization. HSPA (High-Speed Packet Access) enhances WCDMA by significantly increasing data transfer rates and reducing latency for mobile broadband services. Together, WCDMA and HSPA drive efficient voice and data transmission in 3G networks, supporting multimedia and internet applications.
LTE (Long Term Evolution): 4G Air Interface Features
LTE (Long Term Evolution) utilizes an OFDMA (Orthogonal Frequency-Division Multiple Access) air interface enabling high spectral efficiency and low latency for 4G networks. It supports scalable bandwidth from 1.4 MHz to 20 MHz, facilitating flexible deployment across various frequency bands. Key features include MIMO (Multiple Input Multiple Output) technology, advanced modulation schemes like 64-QAM, and optimized channel coding to enhance data throughput and reliability.
5G NR (New Radio): The Next-Generation Air Interface
5G NR (New Radio) represents the advanced air interface designed for next-generation mobile networks, enabling ultra-fast data rates, low latency, and massive connectivity. It incorporates flexible numerology, scalable OFDM-based waveform, and dynamic spectrum sharing to optimize performance across diverse frequency bands. Enhanced MIMO technology and beamforming techniques further improve signal quality and network capacity in 5G deployments.
Key Differences Between FDD and TDD Air Interfaces
Frequency Division Duplex (FDD) air interfaces use separate frequency bands for uplink and downlink transmissions, enabling simultaneous two-way communication with lower latency. Time Division Duplex (TDD) air interfaces share the same frequency band for uplink and downlink but separate transmissions by time slots, allowing dynamic allocation of bandwidth based on traffic demand. FDD is favored for consistent symmetric traffic, while TDD offers flexibility for asymmetrical data patterns, making it ideal for evolving 5G networks.
Role of OFDMA and SC-FDMA in Modern Air Interfaces
OFDMA (Orthogonal Frequency Division Multiple Access) plays a critical role in modern mobile network air interfaces by enabling efficient spectrum utilization and supporting high data rates through parallel transmission of multiple subcarriers. SC-FDMA (Single Carrier Frequency Division Multiple Access) is predominantly used in the uplink to reduce peak-to-average power ratio (PAPR), enhancing battery life and transmission efficiency in user equipment. Together, these technologies optimize both downlink and uplink performance in 4G LTE and 5G NR networks, ensuring reliable and high-capacity wireless communication.
Future Trends in Air Interface Technologies
Future trends in air interface technologies emphasize the integration of millimeter-wave (mmWave) frequencies to achieve ultra-high data rates and reduced latency in 5G and beyond networks. Advanced modulation schemes such as OFDM and massive MIMO enable enhanced spectral efficiency and improved signal reliability. AI-driven dynamic spectrum management and beamforming techniques further optimize network performance, supporting the proliferation of IoT and immersive applications in next-generation mobile communications.

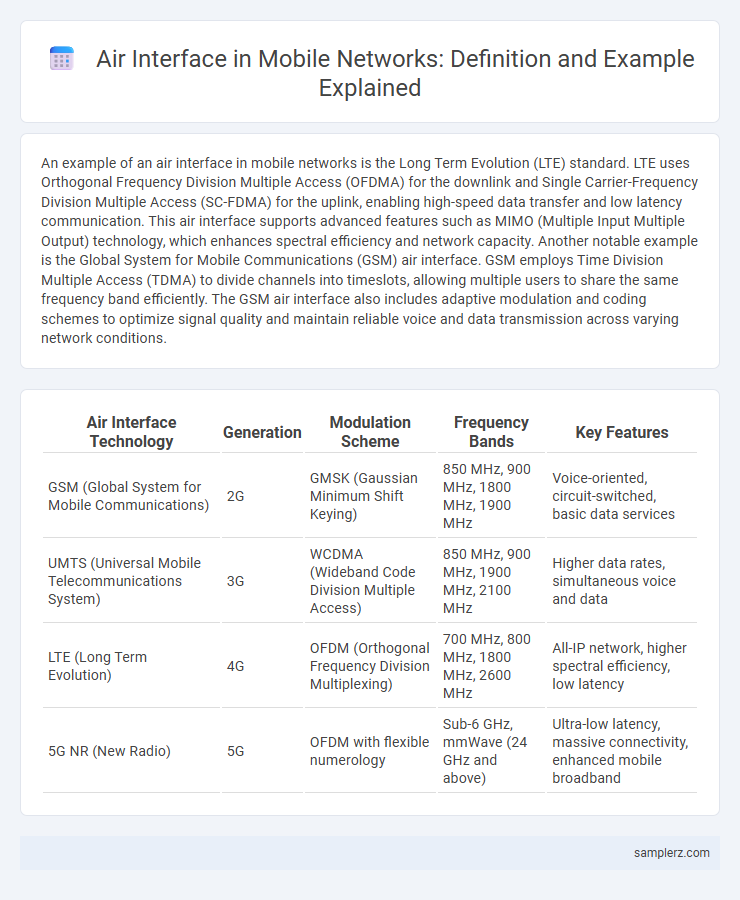

example of airinterface in mobile network Infographic
