samplerz.com Dwell in ignition refers to the period during which the ignition coil is energized to build up a magnetic field before releasing a spark. This time is crucial for generating a strong spark required for efficient combustion in automotive engines. Modern ignition systems precisely control dwell time using electronic modules to optimize engine performance and reduce emissions. In older vehicles with mechanical ignition systems, dwell is determined by the points' opening and closing intervals. Incorrect dwell timing can result in weak sparks, causing engine misfires or poor fuel economy. Accurate measurement and adjustment of dwell time are essential for maintaining reliable ignition and maximizing engine power output.
Table of Comparison
| Ignition System Type | Dwell Time (milliseconds) | Description | Typical Engine RPM Range |
|---|---|---|---|
| Coil-on-Plug (COP) | 2 - 3 ms | Short dwell time for direct ignition coils, optimized for fast spark generation. | Idle to High RPM |
| Distributor Ignition | 3 - 6 ms | Longer dwell time to ensure coil saturation before spark release, common in older vehicles. | Idle to Mid RPM |
| Electronic Ignition (EI) | 3 - 5 ms | Controlled dwell by ECU to optimize coil charging and spark timing. | Idle to High RPM |
| Capacitor Discharge Ignition (CDI) | Less than 1 ms | Very short dwell as energy is stored in capacitors, used in high-performance and motorcycle engines. | Wide RPM Range |
Understanding Dwell in Automotive Ignition Systems
Dwell in automotive ignition systems refers to the time interval during which the ignition coil's primary winding is energized, allowing it to build a magnetic field before releasing energy to the spark plug. Proper dwell angle ensures optimal spark timing and combustion efficiency, directly affecting engine performance and fuel economy. Adjusting dwell time is critical in both traditional points-based systems and modern electronic ignition controls to prevent coil overheating and maintain ignition reliability.
The Role of Dwell Time in Engine Performance
Dwell time in ignition systems refers to the duration the ignition coil is energized, allowing it to build up a magnetic field necessary for a strong spark. Proper dwell time ensures optimal spark energy for efficient combustion, directly influencing engine performance, fuel efficiency, and emissions. Incorrect dwell time can lead to misfires, reduced power output, and increased engine wear.
Traditional Ignition: Mechanical Dwell Examples
Mechanical dwell in traditional ignition systems refers to the period during which the contact points remain closed, allowing current to flow through the ignition coil's primary winding to build a magnetic field. Typical dwell angles range from 25 to 45 degrees, corresponding to approximately 2 to 4 milliseconds of coil energizing time, crucial for optimal spark generation. Proper dwell adjustment ensures efficient ignition coil saturation, preventing misfires and enhancing engine performance.
Electronic Ignition Systems and Dwell Control
Dwell in electronic ignition systems refers to the precise duration the ignition coil is energized to build up sufficient magnetic energy before spark generation, typically measured in milliseconds. Proper dwell control ensures optimal coil saturation, preventing overheating and maximizing spark intensity for efficient combustion. Advanced dwell control algorithms in modern Engine Control Units (ECUs) adjust dwell time dynamically based on engine speed, load, and temperature parameters to maintain ignition performance and fuel efficiency.
Symptoms of Incorrect Dwell in Ignition
Incorrect dwell in ignition often causes engine misfires and rough idling, significantly reducing performance and fuel efficiency. Symptoms include hesitation during acceleration, difficulty starting the engine, and inconsistent spark timing, which leads to increased emissions and potential engine damage. Monitoring dwell angle and ensuring proper ignition coil saturation are critical for maintaining optimal combustion and smooth engine operation.
Measuring Dwell Angle: Tools and Techniques
Measuring dwell angle in ignition systems involves using a dwell meter or a digital oscilloscope to accurately determine the time the ignition coil remains charged during each cycle. Precise measurement of dwell angle ensures optimal coil saturation, preventing misfires and improving engine performance. Techniques include connecting the dwell meter to the ignition coil primary circuit and interpreting oscilloscope waveforms to analyze coil saturation and discharge timings.
Effects of Dwell Variations on Spark Quality
Variations in ignition dwell time directly affect the coil's ability to generate a consistent spark, with insufficient dwell reducing the magnetic field buildup and weakening spark intensity. Extended dwell periods may cause coil overheating, leading to premature wear and erratic spark delivery. Precise control of dwell ensures optimal energy transfer to the spark plug, enhancing combustion efficiency and engine performance.
Optimizing Dwell Settings for Efficiency
Optimizing dwell settings in automotive ignition systems ensures precise control of the coil's charging time, directly impacting spark intensity and engine efficiency. Correct dwell timing reduces coil overheating and conserves energy while improving combustion stability and fuel economy. Effective dwell adjustment aligns with specific engine parameters, enabling enhanced ignition performance and prolonged component lifespan.
Common Dwell Issues in Classic Cars
Common dwell issues in classic cars often stem from worn points or incorrect gap settings, leading to inconsistent ignition coil saturation and misfires. A typical example includes extended dwell time caused by pitted contact points, which prevents the coil from fully energizing and results in weak sparks. Regular inspection and adjustment of the dwell angle, measured in degrees, ensures proper ignition timing and optimal engine performance.
Modern Solutions for Dwell Adjustment
Modern automotive ignition systems utilize microprocessor-controlled modules for precise dwell adjustment, enhancing ignition coil efficiency and spark timing accuracy. Advanced dwell control algorithms monitor engine load and RPM to optimize coil saturation time, reducing misfires and improving fuel combustion. These modern solutions integrate with ECU data, enabling adaptive dwell settings that contribute to lower emissions and improved engine performance.

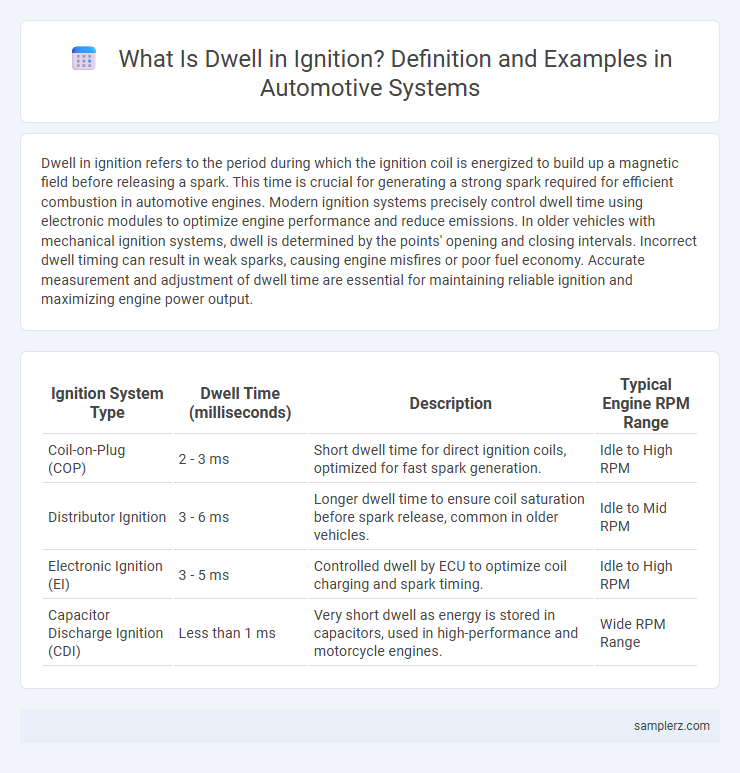

example of dwell in ignition Infographic
