samplerz.com A steering rack is a critical component of the rack and pinion steering system used in many modern vehicles. It converts the rotational motion of the steering wheel into linear motion, allowing precise control of the vehicle's wheels. The rack consists of a metal bar with teeth that mesh with a pinion gear connected to the steering shaft. Data on steering rack materials shows high-strength steel and aluminum alloys are commonly used for durability and lightweight performance. Electronic power steering racks incorporate sensors and electric motors to enhance steering response and efficiency. In automotive design, rack dimensions and gear ratios are optimized to balance steering sensitivity and road feedback.
Table of Comparison
| Rack Type | Description | Common Usage | Advantages | Materials |
|---|---|---|---|---|
| Manual Rack and Pinion | Direct mechanical connection between steering wheel and wheels via rack and pinion gears. | Economy cars and older vehicles | Simple design, lightweight, low cost | Steel, aluminum alloy |
| Power-Assisted Rack and Pinion | Rack and pinion assisted by hydraulic or electric power to reduce steering effort. | Modern passenger cars and light trucks | Improved ease of steering, better control | Steel alloys, composites |
| Hydraulic Power Steering (HPS) Rack | Uses hydraulic fluid pressure to assist movement of the rack. | Mid-range vehicles, trucks | Strong assistance, reliable at various speeds | Steel, rubber seals |
| Electric Power Steering (EPS) Rack | Integrates electric motor assistance directly with the rack for variable steering assistance. | Hybrid and electric vehicles, modern cars | Energy efficient, customizable steering feel | Steel, electronic components |
| Tilt and Telescopic Rack | Rack mechanism combined with adjustable steering column for ergonomics. | Luxury and performance vehicles | Enhanced driver comfort, customizable position | Steel alloys, adjustable linkages |
Understanding the Rack in Automotive Steering Systems
The rack in automotive steering systems is a crucial component that translates rotational motion from the steering wheel into linear motion to turn the wheels. Typically made of steel or aluminum, the rack works in conjunction with the pinion gear to provide precise control and responsiveness. Modern rack-and-pinion steering systems enhance vehicle handling by offering direct feedback and reduced play compared to older steering mechanisms.
Types of Rack-and-Pinion Mechanisms in Cars
Rack-and-pinion steering systems in cars commonly include the recirculating ball, standard rack, and electric power-assisted rack types. Recirculating ball racks use ball bearings to reduce friction, improving durability in heavy vehicles. Electric power-assisted racks integrate an electric motor to enhance steering precision and fuel efficiency.
How Rack Assists Precision Steering
The rack in a steering system converts rotational motion from the steering wheel into linear motion, directly controlling the vehicle's wheels for precise directional changes. Its finely machined teeth mesh with the pinion gear, ensuring accurate and responsive steering input translation. This mechanism minimizes play and improves vehicle handling, contributing to enhanced driver control and safety.
Components of a Rack in Steering Assemblies
A rack in steering assemblies primarily consists of the rack bar, pinion gear, and housing. The rack bar features precisely machined teeth that mesh with the pinion gear connected to the steering shaft, translating rotational motion into linear motion. The housing supports and protects these internal components, ensuring smooth and responsive steering control.
Common Materials Used for Steering Racks
Steering racks in automotive systems commonly use high-strength steel due to its durability and resistance to wear under constant mechanical stress. Aluminum alloys are also prevalent for their lightweight properties, contributing to overall vehicle efficiency and improved fuel economy. Some advanced models incorporate composite materials for enhanced corrosion resistance and reduced friction, optimizing steering performance.
Signs of a Faulty Steering Rack
A faulty steering rack often presents symptoms such as uneven tire wear, excessive play in the steering wheel, and a grinding noise when turning. Leaking power steering fluid and difficulty maintaining alignment are also clear indicators of rack issues. Early detection of these signs can prevent further damage and ensure safer vehicle handling.
Power Steering Racks vs. Manual Steering Racks
Power steering racks use hydraulic or electric assistance to reduce driver effort, providing smoother and more responsive steering compared to manual steering racks. Manual steering racks require direct physical input from the driver, making them lighter and simpler but less effective in reducing steering effort. In modern vehicles, power steering racks dominate due to their enhanced control and safety features.
Popular Car Models Using Rack-and-Pinion Steering
Popular car models such as the Honda Civic, Toyota Camry, and Ford Focus widely use rack-and-pinion steering systems due to their precise control and compact design. This steering mechanism directly connects the steering wheel to the wheels, enhancing responsiveness and handling in urban and highway driving conditions. The simplicity and efficiency of rack-and-pinion systems make them a preferred choice in modern passenger vehicles.
Maintenance Tips for Rack Steering Systems
Regular inspection of the rack and pinion steering system helps detect wear on components like tie rods and seals, preventing leaks and steering issues. Ensuring proper lubrication of the rack improves responsiveness and reduces friction-related damage. Periodic alignment checks maintain optimal rack function and tire wear, enhancing overall vehicle safety.
Upgrading and Replacing Steering Racks in Automobiles
Upgrading and replacing steering racks in automobiles enhances steering precision and vehicle handling, especially when transitioning from traditional recirculating ball racks to modern rack and pinion systems. Performance-oriented vehicles benefit from aftermarket steering racks that provide reduced play and improved feedback, contributing to safer and more responsive driving experiences. Proper installation and alignment during replacement are critical to maintaining steering system integrity and ensuring optimal road performance.

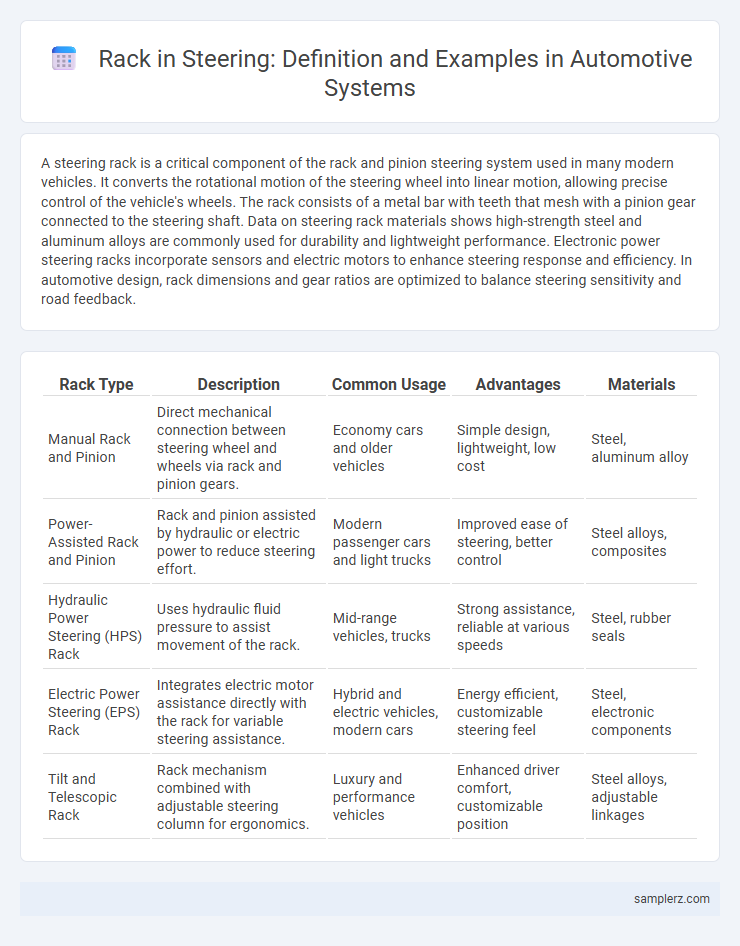

example of rack in steering Infographic
